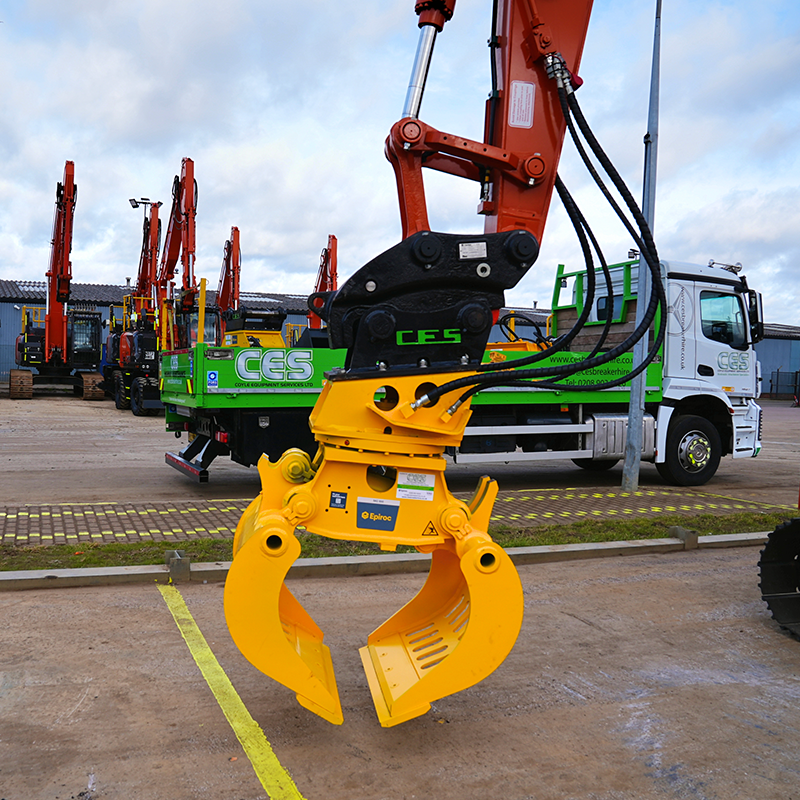

Selector Grabs

Selector Grabs

The S series has been specially designed for intensive use in the recycling industry. Versatile, it allows to seize, demolish, sort, load and recycle all your materials.

  • Optimization of structures by finite element calculation
  • Better gripping of the materials thanks to a kinematics of opening perpendicular to the ground
  • Cylinders equipped with limiting shock absorbers to preserve the structures
  • Wave-shaped shell-shaped reinforcements built into the bars
  • Continuous 360 ° hydraulic rotation by crown motor with anti-shock valve
  • Bolted and inclined plate keeps machine kinematics
  • Anti-abrasion steel counter-blades
  • Limited axial wear by HF treatment
  • Increased resistance by the use of High Limit Elastic Steel
Model Operating Weight Suitable Excavator
s303 268 kg 4/6
s802 725 kg 11/15
s1402 1220 kg 18/21
s3002 2850 kg 60/90

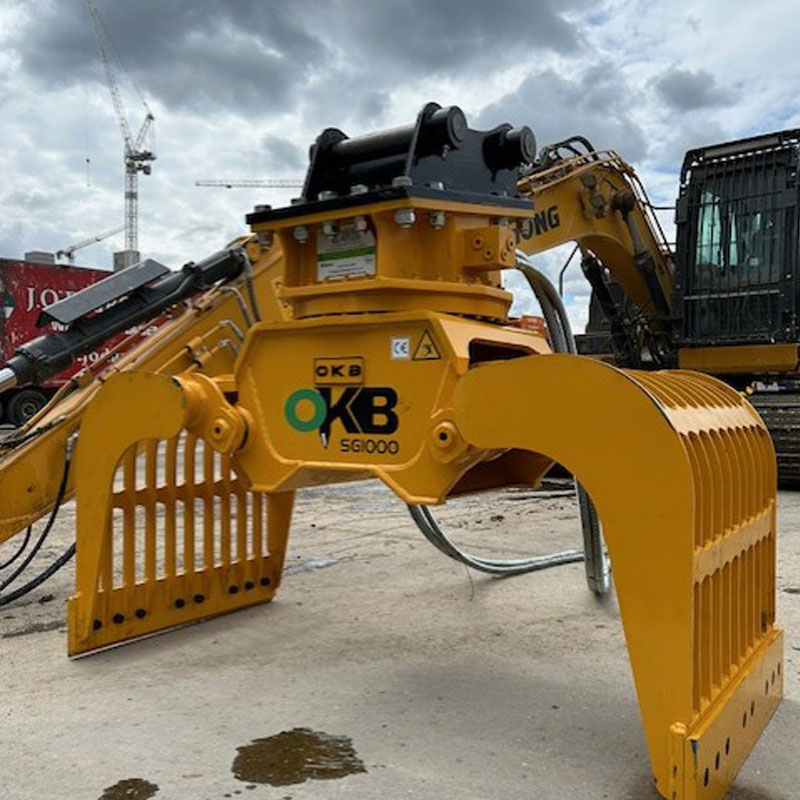

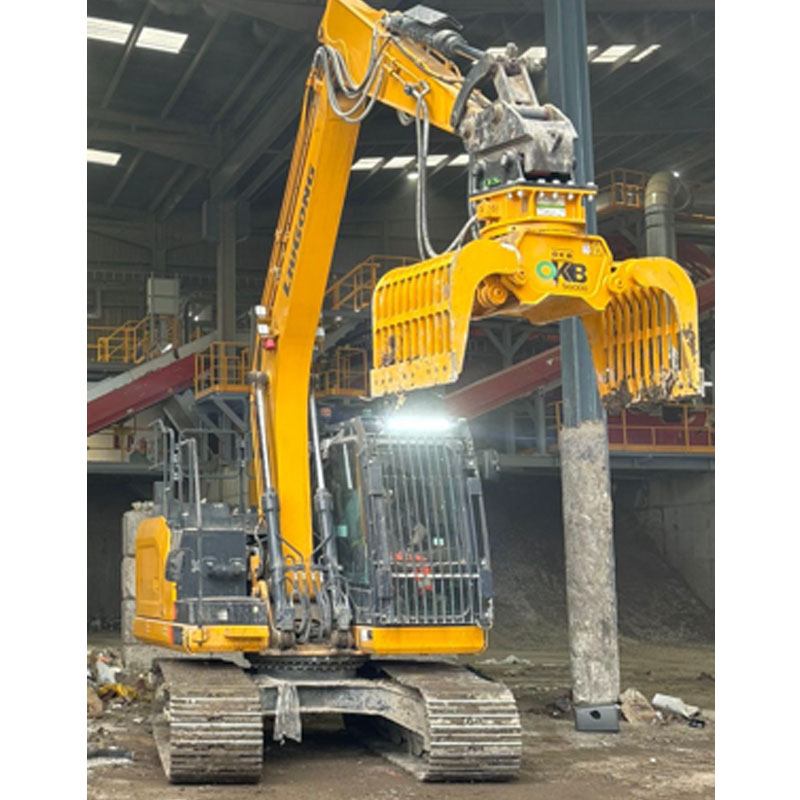

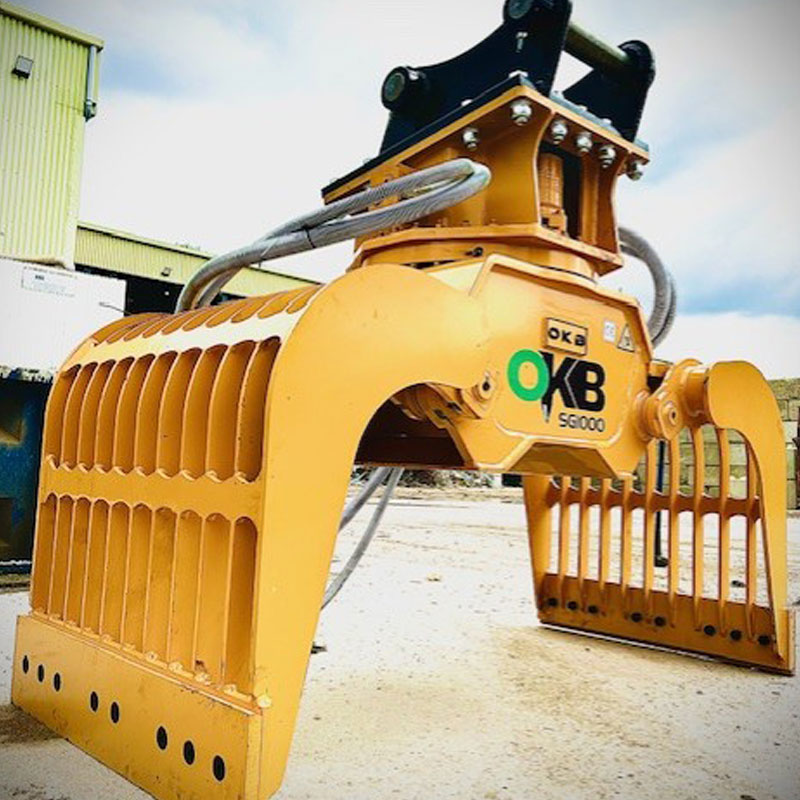

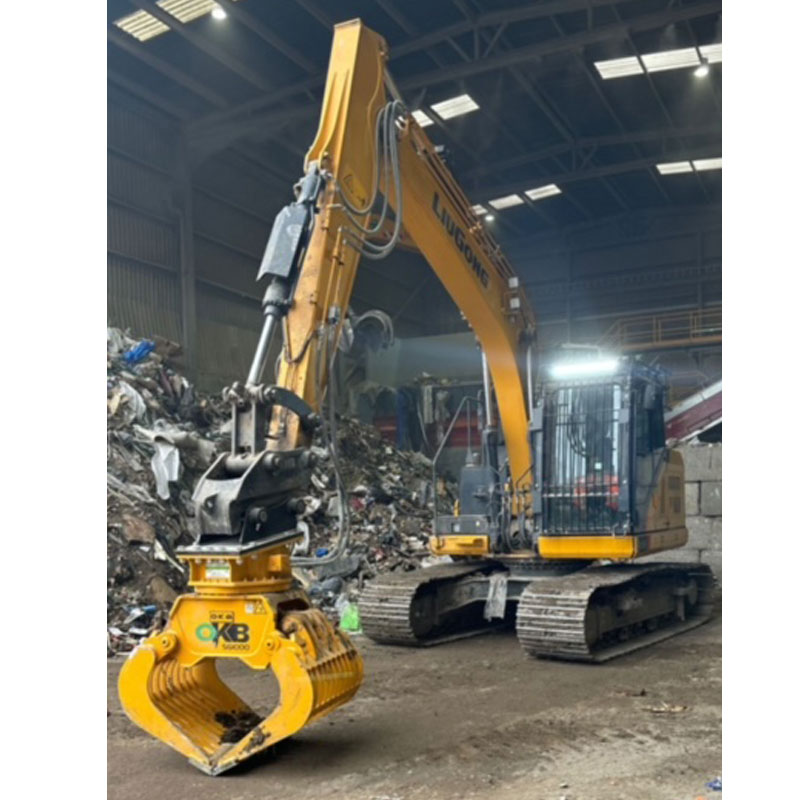

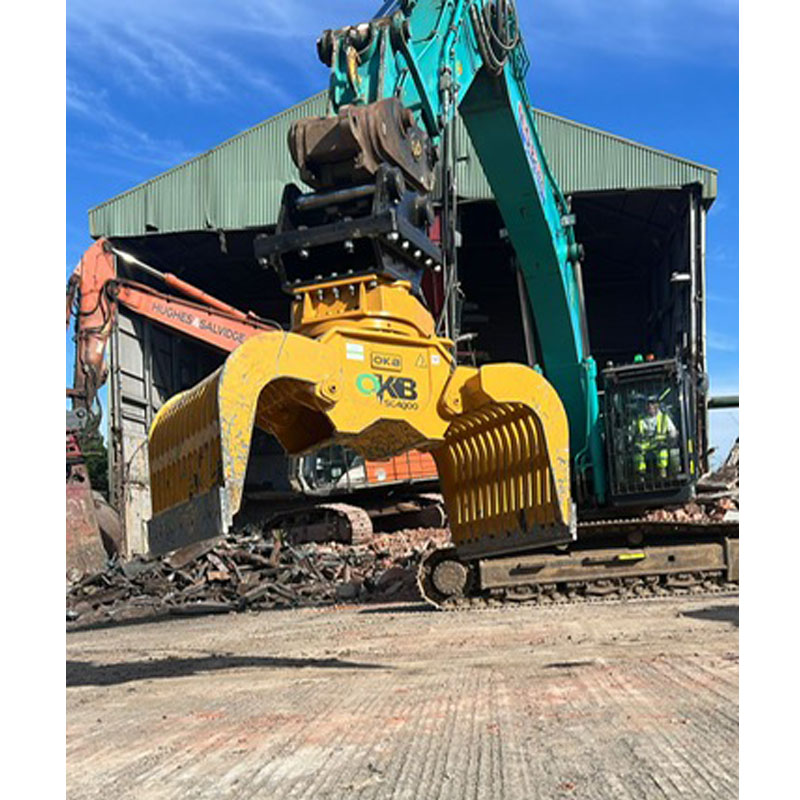

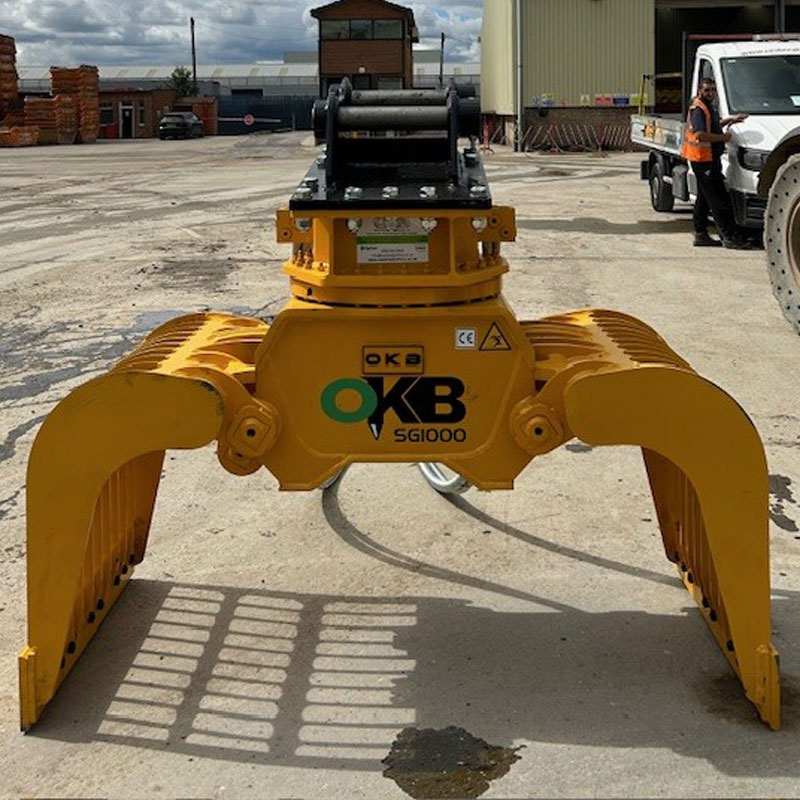

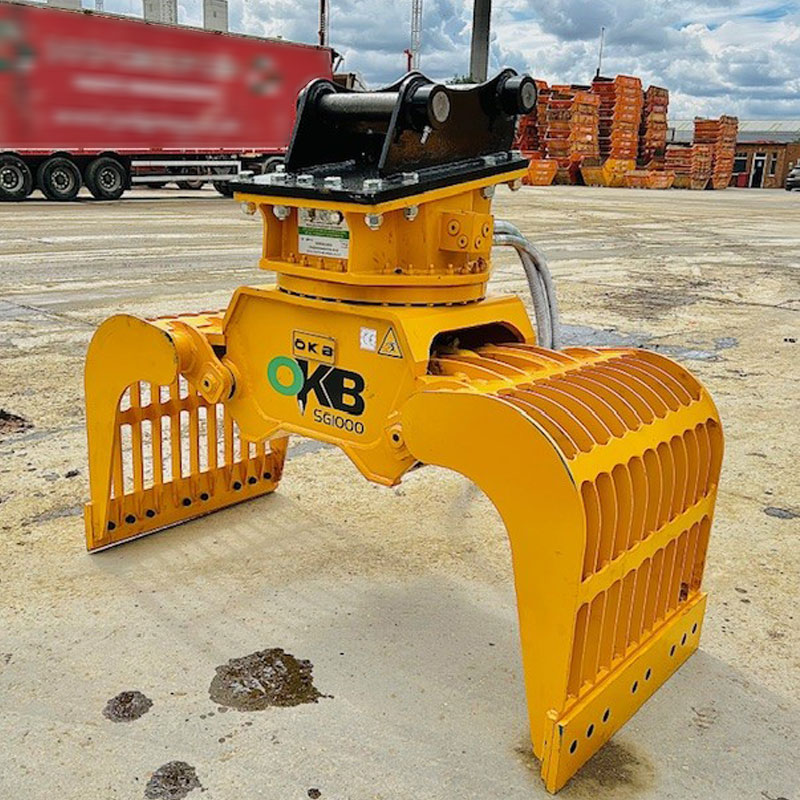

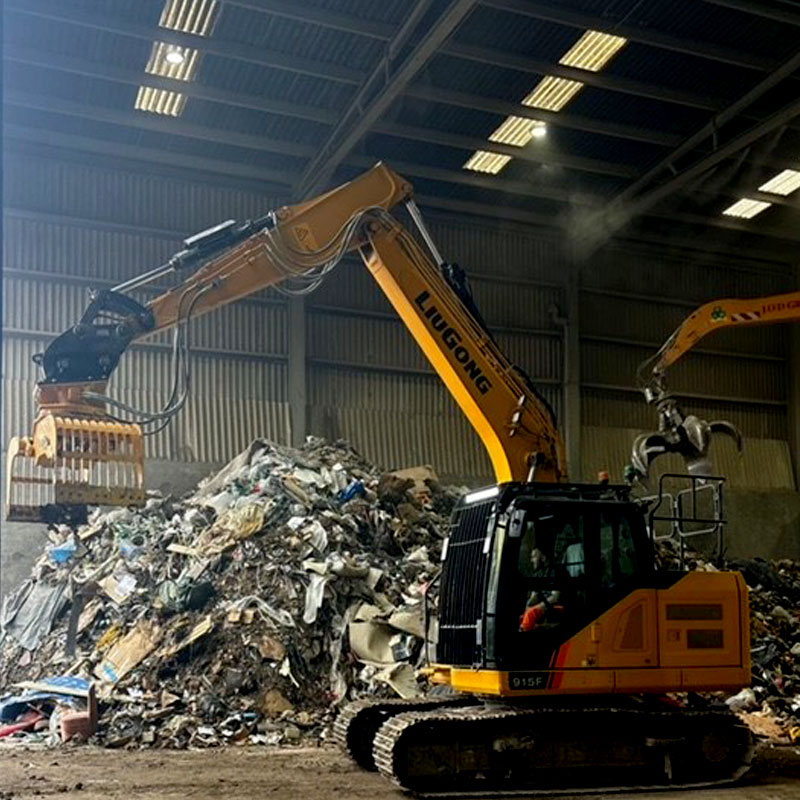

OKB Grabs:



Model Unit SG80 SG150 SG300 SG350 SG1000  SG1500  SG2500 SG3500 SG4500  SG5000
Drill plate / OKB80 OKB150 OKB300 OKB350  OKB1000  OKB1800  OKB2500  OKB4000  OKB4500  OKB4500
Carrier Ton 0.7-1.2 1.2-3T 4-7 6-10 10-15 16-22 23-26 27-30 31-37 30-50
Cylinder Bar  200 300 300 350 350 350 350 350 350 350
Liters/min 15 25-30 15 – 30 15-30 30-65 40-80 55-110 55-110 95-165 190-210
360° rotation Bar  100 100 100 100 140 140 140 140 140 350
Liters/min 5 5-10 6 – 10 8-12 12-20 12-20 14-20 14-20 28-40 28-41
Tr/min 10 10/15 10/14 10/15 10/15 10/15 10/15 10/15 10/15 10/15
Force N 600 15000 2000 25000 40000 50000 60000 62000 93000 93000
A mm 600 915 1160 1290 1710 1845 2000 2100 2270 2350
B mm 430 541 7080 960 1245 1375 1440 1465 1630 1370
C mm 595 635 770 910 905 1000 1050 1190 1275 1635
D mm 600 703 850 930 1080 1100 1290 1375 1425 1830
L mm 300 448 500 550 800 900 1010 1130 1210 1360
Volume L 30 50 100 147 395 470 700 820 1080 1100
Weight Kg 80 180 280 370 745 950 1230 1500 2100 2700

Interested in hiring this equipment?

London : 0208 903 8020

Birmingham : 01527 336 116

South West : 0117 203 4368

Pdf Icon Specification – OKB Grabs
Pdf Icon GRABS.pdf

Take a look at our products in action feel free to Contact us
